SAE 841 Oil Impregnated Bronze Bearings
SAE 841 Oil Impregnated Bronze Bearings
SAE 841 Oil Impregnated Bronze Bearings from National Bronze Mfg are self lubricating and maintenance free.
Manufactured through powdered metallurgy, this process gives the bearings tiny pores formed throughout the structure of the bearing. These interconnected pores serve as a reservoir for lubricant providing a passage for flow to the bearing surface. This flow of oil to the surface of the bearing is the result of a slight increase of surface temperature when the bearing/shaft are in motion. When the rotation of the bearing and shaft commences the oil is absorbed back into the pores.

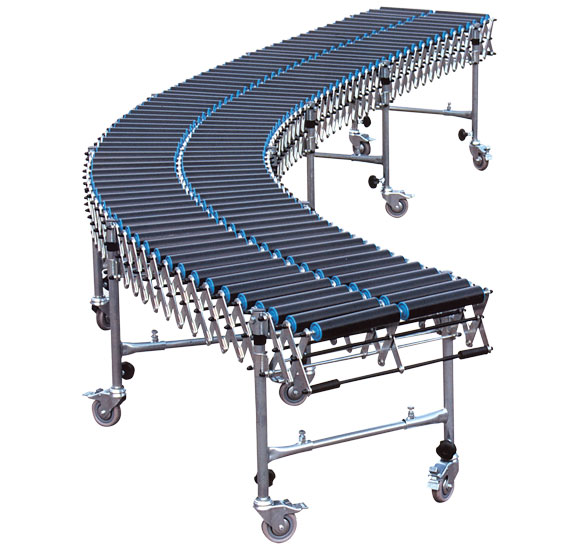

Applications include agriculture equipment, business machines, automotive, conveyors, cranes, appliances, machine tools, packaging machinery, and many more.
Additional capabilities include secondary operations such as grooving, milling, and broaching. Send us a drawing or sample. Generally, we'll have a price back to you within 24 hours.
Physical and Mechanical Properties for SAE 841 Bearings
Density (gm per cu. cm) 6.4-6.8
Porosity (% oil by vol.) 19.0 min
"K" Strength Constant 26,500 psi
Elongation (% in one inch) 1
Yield Strength in Comp (psi) 11,000
Comparable Specifications
ASTM - B-438-05 Grade 1 Type II
Military - MIL-B-5687D
MPIF - CT-1000-K26
