C63000 Nickel Aluminum Bronze AMS 4640 / C630 Bronze
C63000 Nickel Aluminum Bronze is an extruded aluminum bronze that contains nickel, and is alloyed for exceptional strength and toughness. It's used where higher mechanical properties are required. It's used in equipment for the energy markets, in aircraft, marine and a host of other industrial applications. It finds use as valve stems, high strength bushings, valve guides and seats, gears, cams, ship propellers, as well as propeller nuts and shafts
Shapes
 |
Solid Round Bar Stock |
 |
Applications

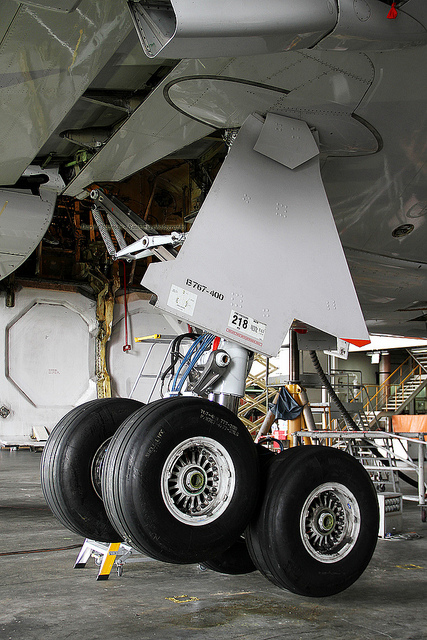

- Landing Gear Bushings
- Valve Seats
- Pump Shafts
- Cams
- Gears
- Valve Guides
- Condenser Tube
- Plunger Tips
Specifications
CHEMICAL COMPOSITION:
| Cu(1) | Al | Fe | Mn | Ni(2) | Si | Sn | Zn | |
| Min./Max. | Rem. | 9.0-11.0 | 2.0-4.0 | 1.5 | 4.0-5.5 | .25 | .20 | .30 |
| Nominal | 82.0 | 10.0 | 3.0 | - | 5.0 | - | - | - |
MECHANICAL PROPERTIES:
| Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
El | Rockwell Hardness |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | % | F | ksi | ksi | % | B | C | F | 30T | 500 | 3000 | ksi | ksi | ||||||
| mm. | C | MPa | MPa | MPa | MPa | ||||||||||||||
| Rod | |||||||||||||||||||
| M30 | 4 | 0 | TYP | 68 | 100 | 60 | 15 | 96 | - | - | - | - | - | 62 | 36 | ||||
| 102 | 20 | 689 | 414 | 15 | 96 | - | - | - | - | - | 427 | 248 | |||||||
| Bar | |||||||||||||||||||
| HR50 | 2 | 10 | TYP | 68 | 100 | 60 | 15 | 96 | - | - | - | - | - | - | - | ||||
| 51 | 20 | 689 | 414 | 15 | 96 | - | - | - | - | - | - | - | |||||||
| Rod | |||||||||||||||||||
| HR50 | 3 | 10 | TYP | 68 | 112 | 62 | 20 | 96 | - | - | - | - | - | 65 | 37 | ||||
| 76 | 20 | 772 | 427 | 20 | 96 | - | - | - | - | - | 448 | 255 | |||||||
| Bar | |||||||||||||||||||
| M30 | 3 | 0 | TYP | 68 | 90 | 50 | 15 | 96 | - | - | - | - | - | - | - | ||||
| 76 | 20 | 621 | 345 | 15 | 96 | - | - | - | - | - | - | - | |||||||
| Rod | |||||||||||||||||||
| HR50 | 1 | 10 | TYP | 68 | 118 | 75 | 15 | 98 | - | - | - | - | - | 70 | 37 | ||||
| 25.4 | 20 | 814 | 517 | 15 | 98 | - | - | - | - | - | 483 | 255 | |||||||
| Bar | |||||||||||||||||||
| HR50 | 1 | 10 | TYP | 68 | 110 | 62 | 15 | 97 | - | - | - | - | - | - | - | ||||
| 25.4 | 20 | 758 | 427 | 15 | 97 | - | - | - | - | - | - | - | |||||||
| Rod | |||||||||||||||||||
| HR50 | 2 | 10 | TYP | 68 | 115 | 65 | 18 | 96 | - | - | - | - | - | 69 | 38 | ||||
| 51 | 20 | 793 | 448 | 18 | 96 | - | - | - | - | - | 476 | 262 | |||||||
| Product | Specification |
| Bar | AMS 4640 ASME SB150 ASTM B150 FEDERAL QQ-C-450 SAE J463, J461 |
| Bar, Forging | ASTM B124 |
| Bolts | ASTM F468 |
| Forgings, Die | AMS 4640 ASTM B283 MILITARY MIL-B-16166 |
| Nuts | ASTM F467 |
| Plate | ASTM B171 FEDERAL QQ-C-450 |
| Plate, Condenser Tube | ASME SB171 ASTM B171 |
| Rod | AMS 4640 ASME SB150 ASTM B150 SAE J463, J461 |
| Rod, Forging | ASTM B124 |
| Screws | ASTM F468 |
| Shapes | AMS 4640 ASTM B150 SAE J461, J463 |
| Shapes, Forging | ASTM B124 |
| Sheet | FEDERAL QQ-C-450 |
| Strip | FEDERAL QQ-C-450 |
| Tube | AMS 4640 |
