C11000 ETP Copper Bar/ C110 Copper/ ETP C110
C11000 ETP (Electronic Tough Pitch) Copper is one of the most popular copper alloys. C110 is basically pure copper with a 99.9% copper composition. 110 Copper is used in a wide variety of applications in a number of industries. It is utilized due to its high electrical conductivity (100% IAS) and its range of fabrication methods. C11000 ETP Copper can be bent, soldered, drilled, peened, rivited and formed. It is not a good machining metal with a machinability rating of 20. C110 also has a high thermal conductivity.
Shapes
 |
 |
Solid Round |
Flat Bar Stock |
 |
|
Applications

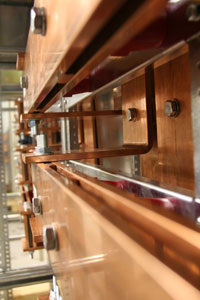

- Bus Bar
- Ground Bar
- Terminals
- Contacts
- Conductors
- Printing Rolls
- Heat Exchangers
Specifications
Chemical Composition
(%max., unless shown as range or min.)
(%max., unless shown as range or min.)
| Cu(1) | O | |
| Min./Max. | 99.90 min | - |
| Nominal | - | .04 |
Mechanical Properties (measured at room temperature, 68 F (20 C)
| Temper | Section Size |
Cold Work |
Typ/ Min |
Temp | Tensile Strength |
Yield Strength (0.5% ext. under load) |
El | Rockwell Hardness |
Brinell Hard. |
Shear Strength |
Fatigue Strength* |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | % | F | ksi | ksi | % | B | C | F | 30T | 500 | 3000 | ksi | ksi | ||||||
| mm. | C | MPa | MPa | MPa | MPa | ||||||||||||||
| Flat Products | H02 | 0.04 | 0 | TYP | 68 | 42 | 36 | 14 | 40 | - | 84 | 50 | - | - | 26 | 13 | |||
| 1 | 20 | 290 | 248 | 14 | 40 | - | 84 | 50 | - | - | 179 | 90 | |||||||
| M20 | 0.025 | 0 | TYP | 68 | 32 | 10 | 50 | - | - | 40 | - | - | - | 22 | - | ||||
| 0.64 | 20 | 221 | 69 | 50 | - | - | 40 | - | - | - | 152 | - | |||||||
| Rod | M20 | 1 | 0 | TYP | 68 | 32 | 10 | 55 | - | - | 40 | - | - | - | 22 | - | |||
| 25.4 | 20 | 221 | 69 | 55 | - | - | 40 | - | - | - | 152 | - | |||||||
| Shapes | M30 | 0.5 | 0 | TYP | 68 | 32 | 10 | 50 | - | - | 40 | - | - | - | 22 | - | |||
| 12.7 | 20 | 221 | 69 | 50 | - | - | 40 | - | - | - | 152 | - | |||||||
| M20 | 0.5 | 0 | TYP | 68 | 32 | 10 | 50 | - | - | 40 | - | - | - | 22 | - | ||||
| 12.7 | 20 | 221 | 69 | 50 | - | - | 40 | - | - | - | 152 | - | |||||||
| Flat Products | H04 | 0.04 | 0 | TYP | 68 | 50 | 45 | 6 | 50 | - | 90 | 57 | - | - | 28 | - | |||
| 1 | 20 | 345 | 310 | 6 | 50 | - | 90 | 57 | - | - | 193 | - | |||||||
| Rod | H04 | 0.25 | 40 | TYP | 68 | 55 | 50 | 10 | 60 | - | 94 | - | - | - | 29 | - | |||
| 6.35 | 20 | 379 | 345 | 10 | 60 | - | 94 | - | - | - | 200 | - | |||||||
| Wire | OS050 | 0.08 | 0 | TYP | 68 | 35 | - | 35 | - | - | - | - | - | - | 24 | - | |||
| 2 | 20 | 241 | - | 35 | - | - | - | - | - | - | 165 | - | |||||||
| Flat Products | H08 | 0.04 | 0 | TYP | 68 | 55 | 50 | 4 | 60 | - | 94 | 63 | - | - | 29 | 14 | |||
| 1 | 20 | 379 | 345 | 4 | 60 | - | 94 | 63 | - | - | 200 | 97 | |||||||
| H01 | 0.025 | 0 | TYP | 68 | 38 | 30 | 35 | 25 | - | 70 | - | - | - | 25 | - | ||||
| 0.64 | 20 | 262 | 207 | 35 | 25 | - | 70 | - | - | - | 172 | - | |||||||
| Rod | OS050 | 1 | 0 | TYP | 68 | 32 | 10 | 55 | - | - | 40 | - | - | - | 22 | - | |||
| 25.4 | 20 | 221 | 69 | 55 | - | - | 40 | - | - | - | 152 | - | |||||||
| Wire | H08 | 0.08 | 0 | TYP | 68 | 66 | - | 1 | - | - | - | - | - | - | 33 | - | |||
| 2 | 20 | 455 | - | 1 | - | - | - | - | - | - | 228 | - | |||||||
| Flat Products | H04 | 1 | 0 | TYP | 68 | 45 | 40 | 20 | 45 | - | 85 | - | - | - | 26 | - | |||
| 25.4 | 20 | 310 | 276 | 20 | 45 | - | 85 | - | - | - | 179 | - | |||||||
| OS050 | 0.025 | 0 | TYP | 68 | 32 | 10 | 50 | - | - | 40 | - | - | - | 22 | - | ||||
| 0.64 | 20 | 221 | 69 | 50 | - | - | 40 | - | - | - | 152 | - | |||||||
| H00 | 0.025 | 0 | TYP | 68 | 36 | 28 | 40 | 10 | - | 60 | - | - | - | 25 | - | ||||
| 0.64 | 20 | 248 | 193 | 40 | 10 | - | 60 | - | - | - | 172 | - | |||||||
| Rod | H04 | 2 | 16 | TYP | 68 | 45 | 40 | 20 | 45 | - | 85 | - | - | - | 26 | - | |||
| 51 | 20 | 310 | 276 | 20 | 45 | - | 85 | - | - | - | 179 | - | |||||||
| H04 | 1 | 35 | TYP | 68 | 48 | 44 | 16 | 47 | - | 87 | - | - | - | 27 | 17 | ||||
| 25.4 | 20 | 331 | 303 | 16 | 47 | - | 87 | - | - | - | 186 | 117 | |||||||
| Tube | OS025 | 0.065 | 0 | TYP | 68 | 34 | 11 | 45 | - | - | 45 | - | - | - | 23 | - | |||
| 1.65 | 20 | 234 | 76 | 45 | - | - | 45 | - | - | - | 159 | - | |||||||
| H80 | 0.065 | 40 | TYP | 68 | 55 | 50 | 8 | 60 | - | 95 | 63 | - | - | 29 | - | ||||
| 1.65 | 20 | 379 | 345 | 8 | 60 | - | 95 | 63 | - | - | 200 | - | |||||||
| H55 | 0.065 | 15 | TYP | 68 | 40 | 32 | 25 | 35 | - | 77 | 45 | - | - | 26 | - | ||||
| 1.65 | 20 | 276 | 221 | 25 | 35 | - | 77 | 45 | - | - | 179 | - | |||||||
| Flat Products | M20 | 0.04 | 0 | TYP | 68 | 34 | 10 | 45 | - | - | 45 | - | - | - | 23 | - | |||
| 1 | 20 | 234 | 69 | 45 | - | - | 45 | - | - | - | 159 | - | |||||||
| Shapes | OS050 | 0.5 | 0 | TYP | 68 | 32 | 10 | 50 | - | - | 40 | - | - | - | 22 | - | |||
| 12.7 | 20 | 221 | 69 | 50 | - | - | 40 | - | - | - | 152 | - | |||||||
| Wire | H04 | 0.08 | 0 | TYP | 68 | 55 | - | 1 | - | - | - | - | - | - | 29 | - | |||
| 2 | 20 | 379 | - | 1 | - | - | - | - | - | - | 200 | - | |||||||
| Flat Products | OS050 | 0.04 | 0 | TYP | 68 | 32 | 10 | 45 | - | - | 40 | - | - | - | 22 | - | |||
| 1 | 20 | 221 | 69 | 45 | - | - | 40 | - | - | - | 152 | - | |||||||
| Shapes | H04 | 0.5 | 15 | TYP | 68 | 40 | 32 | 30 | 35 | - | - | - | - | - | 26 | - | |||
| 12.7 | 20 | 276 | 221 | 30 | 35 | - | - | - | - | - | 179 | - | |||||||
| Tube | OS050 | 0.065 | 0 | TYP | 68 | 32 | 10 | 45 | - | - | 40 | - | - | - | 22 | - | |||
| 1.65 | 20 | 221 | 69 | 45 | - | - | 40 | - | - | - | 152 | - | |||||||
| Flat Products | OS025 | 0.04 | 0 | TYP | 68 | 34 | 11 | 45 | - | - | 45 | - | - | - | 23 | 11 | |||
| 1 | 20 | 234 | 76 | 45 | - | - | 45 | - | - | - | 159 | 76 | |||||||
| H10 | 0.04 | 0 | TYP | 68 | 57 | 53 | 4 | 62 | - | 95 | 64 | - | - | 29 | - | ||||
| 1 | 20 | 393 | 365 | 4 | 62 | - | 95 | 64 | - | - | 200 | - | |||||||
| H01 | 0.04 | 0 | TYP | 68 | 38 | 30 | 25 | 25 | - | 70 | 36 | - | - | 25 | - | ||||
| 1 | 20 | 262 | 207 | 25 | 25 | - | 70 | 36 | - | - | 172 | - | |||||||
| H00 | 0.04 | 0 | TYP | 68 | 36 | 28 | 30 | 10 | - | 60 | 25 | - | - | 25 | - | ||||
| 1 | 20 | 248 | 193 | 30 | 10 | - | 60 | 25 | - | - | 172 | - | |||||||
| H04 | 0.025 | 0 | TYP | 68 | 50 | 45 | 12 | 50 | - | 90 | - | - | - | 28 | - | ||||
| 0.64 | 20 | 345 | 310 | 12 | 50 | - | 90 | - | - | - | 193 | - | |||||||
